93760003 5mm Drill Bit for Gerber Cutters

Description

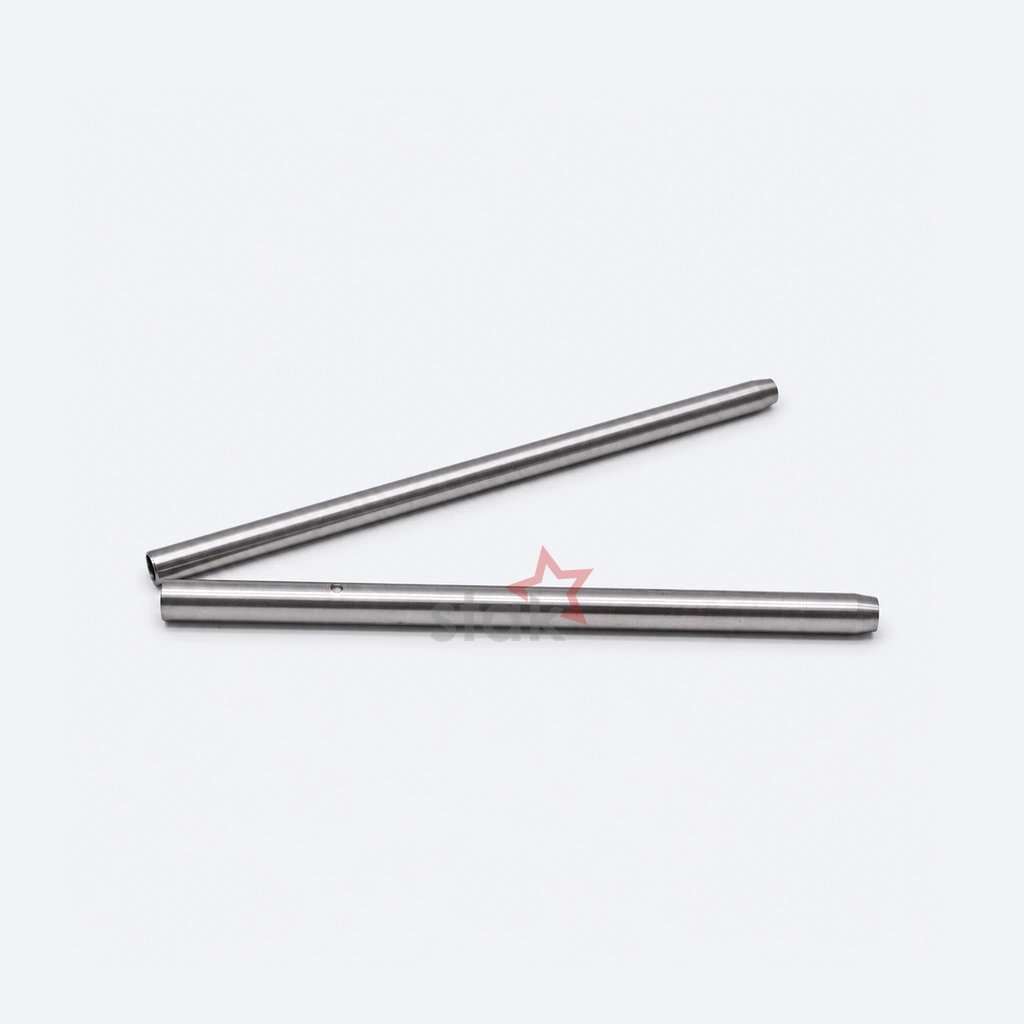

93760003 5mm Drill Bit

Stak replacement 5mm drill bit for Gerber cutters, reference 93760003. Nominal drill size: 5mm; reference 93760003. Confirm the required version against your original part before ordering.

Reference specifications and identification

Machine application and version check

Listed applications: Gerber Paragon HX / VX; Gerber XLc7000 / Z7. Confirm the machine model, assembly position and part revision against your maintenance drawing.

A different replacement number for 93760003 has not been confirmed. Use the complete reference and original-part details in your inquiry.

Check the correct configuration

• Match the complete reference on the original part or maintenance drawing.
• Compare the nominal drill size, cutting tip, shank diameter, overall length, and drill attachment.
• Match the 5mm nominal drill size, then confirm the shank, overall length and drill attachment. A nominal size does not specify every fitted dimension.
• Confirm supplied material, tolerances and included components in the quotation.

Frequently asked questions

What is 93760003?

Stak replacement 5mm drill bit for Gerber cutters, reference 93760003. Nominal drill size: 5mm; reference 93760003. Confirm the required version against your original part before ordering.

Which Gerber machines use 93760003?

Listed applications: Gerber Paragon HX / VX; Gerber XLc7000 / Z7. Confirm the machine model, assembly position and part revision against your maintenance drawing.

What should I check before ordering 93760003?

Compare the nominal drill size, cutting tip, shank diameter, overall length, and drill attachment. Match the 5mm nominal drill size, then confirm the shank, overall length and drill attachment. A nominal size does not specify every fitted dimension.

Does the 5mm size establish all dimensions of 93760003?

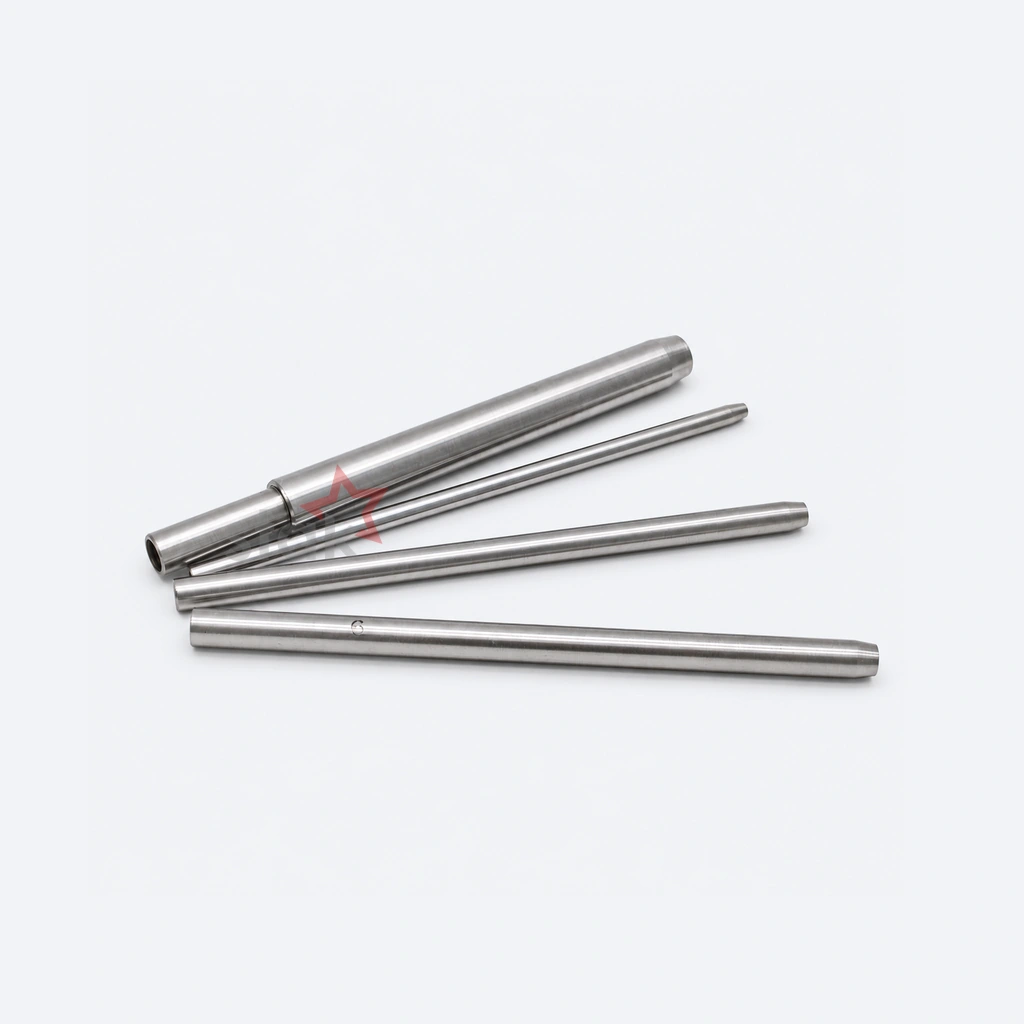

No. 5mm is the nominal drill size in the source. Confirm the shank, overall length and attachment separately. A series photograph can show other sizes and does not define the supplied quantity.

How can I get a quote for 93760003?

Send Stak reference 93760003, your Gerber machine model, required quantity and delivery country. Include photographs and the relevant measurements to confirm the version, supplied contents and price. Production time is 1-7 days.

What is the production time for 93760003?

The production time for 93760003 is 1-7 days.

What is service life of 93760003?

Service life depends on installation, daily operating hours, the materials being cut, working conditions, cleaning and maintenance. There is no single lifespan that applies to every application. We recommend testing samples under your actual production conditions to assess durability and cutting performance.

Additional Gerber punching drill FAQs

What is the material of Gerber punching drill 93760003?

The drill body is made from M2 high-speed tool steel (M2 HSS). It is hardened by quenching and tempering for good wear resistance.

What is the function of Gerber punching drill 93760003?

1. Alignment and positioning marks (the most common use): Makes locating holes through multilayer material lays so cut pieces can be aligned during sewing, bundling and pattern matching. Examples include dart, pocket-position and pleat-position marks.
2. Functional and process holes: Makes holes required by the part or production process, such as holes used for buttonhole and eyelet processing, drawcord holes and tie-strap holes in furniture upholstery.
3. Cut-piece identification: Uses holes in different positions to identify different sizes or styles of the same pattern, helping downstream sorting and replacing handwritten identification marks.

Request a quote

Send Stak reference 93760003, your Gerber machine model, required quantity and delivery country. Include photographs and the relevant measurements to confirm the version, supplied contents and price. Production time is 1-7 days.
