Description
Cutting blade for Morgan NEXT 90 — 503-12-151
This Stak HSS M2 replacement cutting blade is listed for Morgan NEXT 90. Listed reference: 503-12-151. Its nominal dimensions are 365 × 9.3 × 3 mm (length × width × thickness).

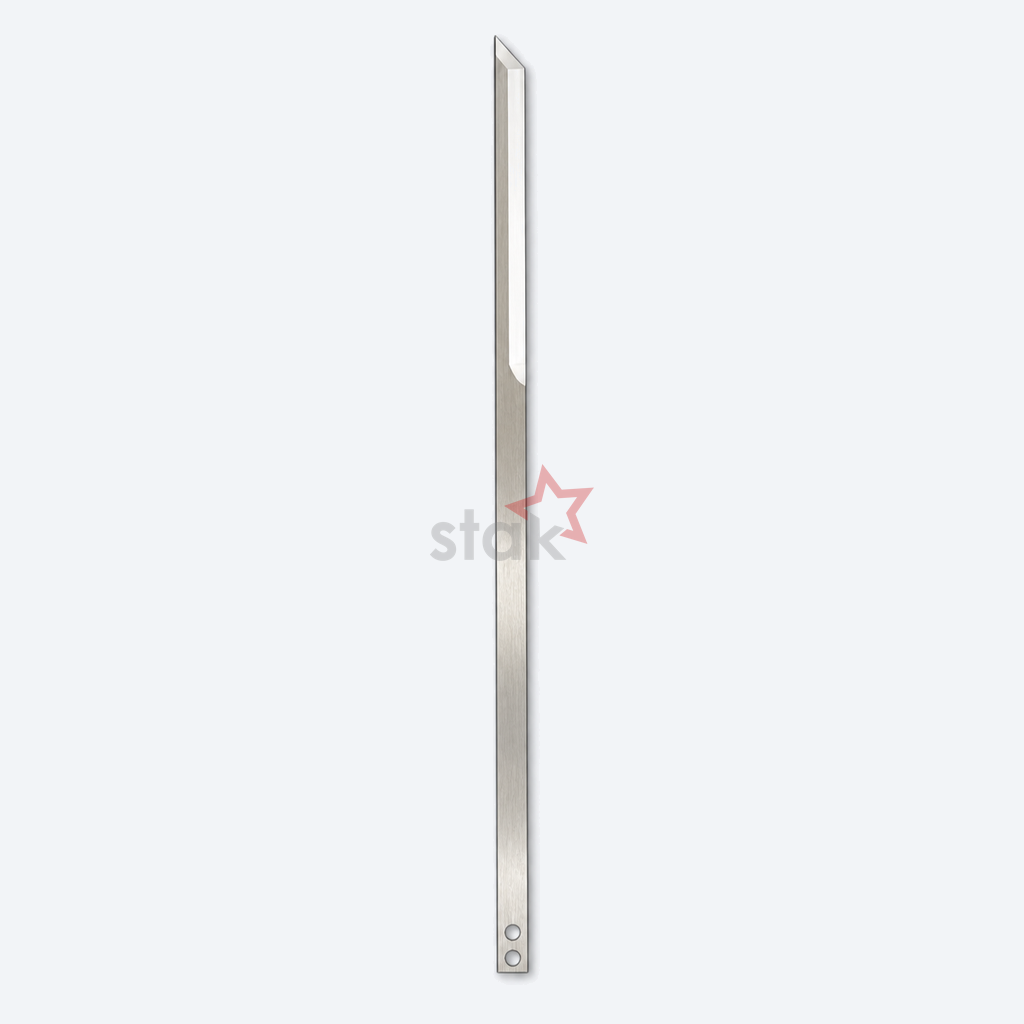

Compare the blade profile and mounting end shown in the product photographs with the blade being replaced.
Blade specifications
| Product brand | Stak |
|---|---|
| Part type | Cutting blade |
| Reference number | 503-12-151 |
| Compatible machine brand | Morgan |
| Listed cutter model | NEXT 90 |
| Nominal dimensions (L × W × T) | 365 × 9.3 × 3 mm |
| Length | 365 mm |
| Width | 9.3 mm |
| Thickness | 3 mm |
| Standard material | HSS M2 |
| M35 material | Custom manufacture on request |
Check compatibility before ordering
- Match the complete blade reference and Morgan machine model.
- Compare the nominal 365 mm length, 9.3 mm width and 3 mm thickness with your existing blade.
- Compare the fixing details, mounting-end geometry and blade profile with the removed part or maintenance drawing.
- Include the machine configuration and clear blade photographs if identification is uncertain.
Compare Morgan cutting blade references
| Blade reference / size | Listed application | Nominal dimensions (L × W × T) | Product |
|---|---|---|---|
| 503-12-151 | Morgan NEXT 90 | 365 × 9.3 × 3 mm | This blade |
| 283 × 8.5 × 2.4 mm cut-corner | Morgan | 283 × 8.5 × 2.4 mm | Separate blade reference |
| 283 × 8.5 × 2.4 mm square-tail | Morgan | 283 × 8.5 × 2.4 mm | Separate blade reference |
These are separate blade references and size variants for comparison. A shared machine brand or a similar size does not make the blades interchangeable.
Sharpening components and related parts
Identify the sharpening stone or belt, blade guide and holder by their own references. Send the existing component numbers and photographs of your Morgan cutting assembly when requesting a maintenance-parts quotation.
Browse sharpening and grinding parts · Browse Morgan-compatible parts · Browse cutting blades
Blade questions and ordering information
Who supplies this cutting blade?
This is a Stak replacement cutting blade for the listed Morgan NEXT 90 application. Morgan names and reference numbers identify the intended machine application.
Which cutter model is the 503-12-151 blade compatible with?
This listing identifies Morgan NEXT 90. The listed models are NEXT 90. Compare the complete reference, 365 × 9.3 × 3 mm nominal dimensions and mounting details with your existing blade before ordering.
What are the dimensions of this 503-12-151 blade?
The nominal dimensions are 365 × 9.3 × 3 mm, stated as length × width × thickness. The length is 365 mm, width 9.3 mm and thickness 3 mm. Also compare the mounting geometry and blade profile.
How can I confirm that this blade fits my machine?
Compare the complete blade reference, machine model, 365 × 9.3 × 3 mm nominal dimensions and mounting-end geometry with the removed blade. Send a full-length photograph and a close-up of the fixing end when any detail needs confirmation.
Can blades with the same dimensions be used interchangeably?
Matching length, width and thickness alone does not confirm interchangeability. The fixing details, mounting geometry, blade profile and machine configuration must also match. Check each reference separately before substituting one blade for another.
What material is this 503-12-151 blade made from?
The standard blade is made from M2 high-speed steel (HSS M2). HSS M35 blades can be manufactured on request. Send the blade reference or measurements, machine model, fabric type and required quantity so the custom specification and production lead time can be confirmed.
Which sharpening stone or belt should I use with this blade?
The sharpening component must match the cutter’s sharpening assembly and the blade. Send the stone or belt reference, Morgan machine details and photographs of the assembly to check the required component before quoting.
How long does this blade last?
Service life depends on the material being cut, cutting workload, machine settings, sharpening and maintenance. Share your fabric type and current blade consumption when discussing requirements. A fixed number of operating hours or cuts is not specified.
What are the minimum order quantity and packing quantity?
Minimum order quantity and blades per box are confirmed with the quotation for 503-12-151. Provide the quantity you require so MOQ and packing can be confirmed for your inquiry.
What information do you need for a quotation?
Provide reference 503-12-151, your Morgan machine model, required quantity and delivery country. Include fabric details for HSS M35 customization. Add clear photographs of the whole blade and fixing end if identification is uncertain.
Request a quote for 503-12-151
Send the blade reference or dimensions, Morgan machine details, required quantity and delivery country. Add fabric details for HSS M35 customization. Stak will confirm the specification, packing quantity and MOQ for your inquiry.
Stak supplies the 503-12-151 365 × 9.3 × 3 mm HSS M2 replacement cutting blade for Morgan NEXT 90, with custom HSS M35 manufacture available on request.
